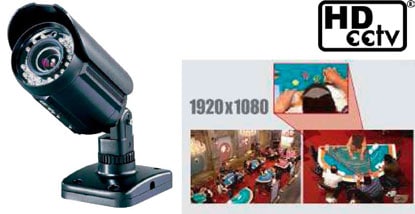

True Day/Night HD-SDI Megapixel Bullet Style IR (Infrared) Cameras

This bullet-style infrared cctv camera is made for day and night use – giving round the clock protection for your premises.  This cctv camera benefits from HD quality images, makes use of 30 infrared (IR) LEDs and digital noise reduction.  There is no networking required, with broadcast-style transmission over coaxial cable.  Weatherproofing to IP66 standards.  This digital infrared cctv camera produces 720p or full HD 1080p digital images and has 1.3 Megapixel or 2.0 Megapixel CMOS Image sensors.

Unison Integrated Technology can design, supply and install complete cctv camera systems and solutions for a wide range of business, industrial, public sector and school premises.  Contact Unison Integrated Technology Ltd on 0121 544 8470 or email sales@unisoncctv.co.uk

CCTV Installer

Key Features
1.3MP or 2.0MP CMOS Image Sensors 720p or Full HD1080p Digital Images HD-SDI Output Interface Broadcast Style Transmission over Coaxial Cable (No Networking Required) Uncompressed Images (Zero Latency) Dual Streaming (H.264/H.264 , H.264/MJPEG) 30 IR LEDs (20m Illumination*) Mechanical IR Cut-Filter Digital Noise Reduction O.S.D. Menu Selectable Gain Control

  • Selectable White Balance
  • Selectable Back Light Compensation
  • Alarm In/Out
  • RS-485 Communication
  • DualVideo Output NTSC/PAL Selectable
  • No Bandwidth Issues
  • Weatherproof (IP66) DC 12V ±10%

Infrared cameras are extremely useful in capturing images of activity at night.  However, during the day natural infrared light which occurs in daylight is sufficient to be detected by unfiltered IR cctv cameras and results in a slight colour shift which creates a slightly different image colour to the one you would expect to be a ‘true’ daytime image.

To combat this, an infra-red filter is can be moved into position over the Infrared camera by a motor-unit during the day. This filters the infra-red, creating a truer daytime image colour.  When the camera goes into night-time mode,  the filter is automatically moved out of the way by the motor – leading to the black and white night vision you may be familiar with.  So you get the best of both worlds – a night vision cctv system which has the added benefit of producing superior, truer images during daylight.

Model Number HDBI3IIR HDB20IIR
Image Sensor 1/3″ Sony I.3MP   CMOS Sensor I/2.8″ Sony 2.0MP   CMOS Sensor
Scanning System Progressive Scan
Resolution 1 Megapixel 720p, 1280 x   720 (60 FPS) 2 Megapixel I080p, I920   x I080 (30FPS)
Sensitivity (F1.2) 1.0 Lux (0 Lux with IR   ON)
Lens 3-I0mm Megapixel IR DC   AI Varifocal Lens
Effective Pixels (H x V) 1329(H) x I049(V) 2096(H) x I56I (V)
Electronic Shutter Speed Flickerless / Auto /   Manual (I/30 ~ I/I2,000)
Scanning System 2: I Interlace
S/N Ratio >50dB
Synchronisation Internal
Video Output (BNC Type)
Day / Night Colour / Auto / B&W   (ICR)
DNR On / Off
O.S.D. Yes, Built-in (with   multi-language support)
Gain Control Auto, High, Low, Off   Selectable
White Balance ATW / FIXED / MANUAL
Back Light Compensation OFF / LOW / MIDDLE /   HIGH
Sensor & Alarm Sensor I port, Alarm I   port
Flickerless Off / 50Hz / 60Hz   (Selectable)
IR LEDs &   Illumination Distance 30 IR LEDs,   Approximately 20 Metres in Ideal Conditions (850nm)
IP Rating IP66
Communication RS-485
Operating Conditions Temperature: -I0°C ~   +50°C, Humidity: 95% RH
Power Supply DC I2V ±I0%
Power Consumption 450mA., 750mA (With IR   ON)
Dimensions (W x H x D) 90.3 x I30.8 x 245.9 mm
